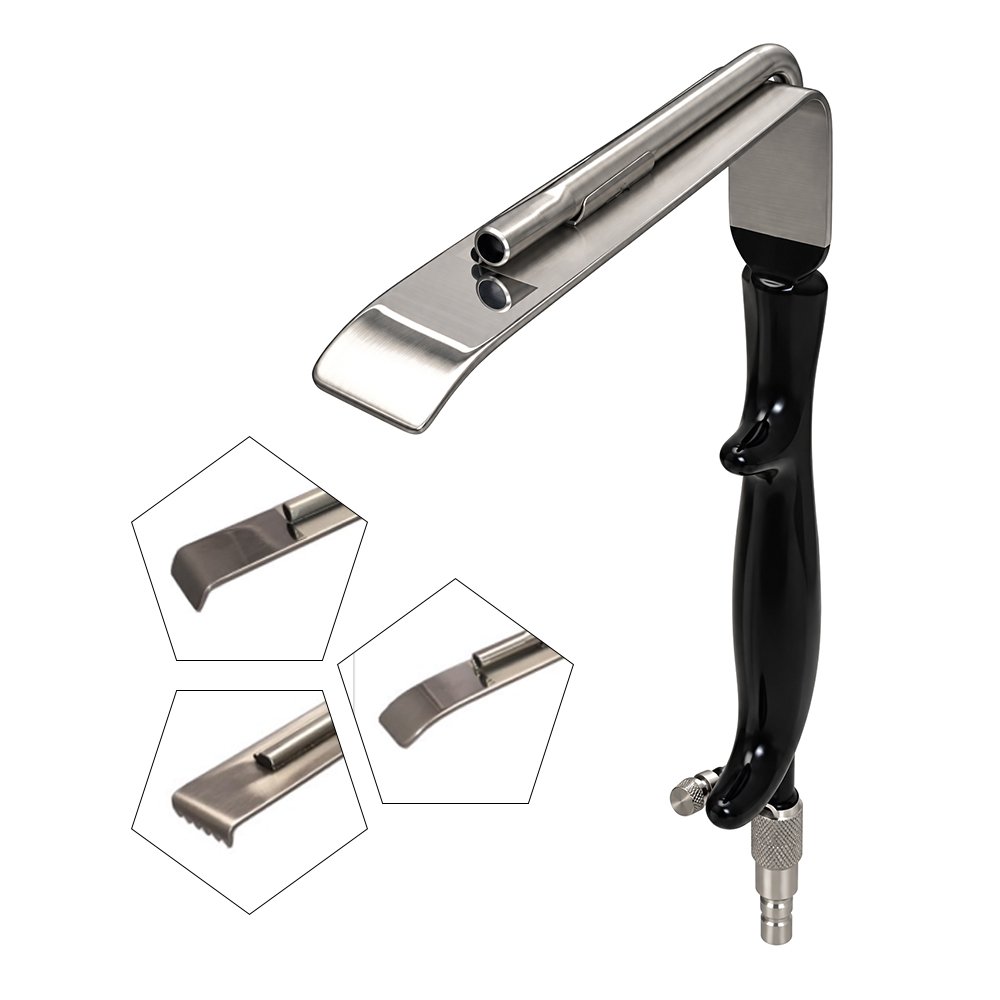

The Standard Fiber Optic Retractors by NJ Medical Instruments combine a stainless steel blade, a laser-welded 5 mm fiber optic light carrier and a non-slip stainless steel handle in a one-piece design built for strength and stability. They are available in 12 blade sizes (14 mm × 7 cm to 38 mm × 25 cm) and three tip designs: Curved Down Smooth, Right Angle Smooth and Right Angle with Teeth. Each tip is offered with or without suction, for 72 configurations in all.
$ 119 – $ 209Price range: $ 119 through $ 209
Standard International Shipping Depending on Destination and Customs Clearance
7-15 Days
Flat 49 $. Free on Order Over 250$
Express Shipping (DHL/FedEx/TNT)
3-7 Days
Additional Cost Will Be Applied
Bulk/Wholesale Freight Delivery Timelines are Agreed Upon Separately Based on Order Volume and Destination.
Shipping & Exchange Policy
Return & Refund Policy
Payment Methods:
The Standard Fiber Optic Retractors from NJ Medical Instruments bring cold fiber optic light to the working end of the blade, improving tissue exposure in plastic, specialty and general surgical procedures. The one-piece design joins the blade, light carrier and handle into a single rigid instrument for strength and stability.
A flat, low-profile 5 mm light carrier is laser welded and sealed along the blade, and on suction models the suction tube is welded in the same way, so there are no loose parts. The polished blade tip reflects light into the surgical field, and the stainless steel handle has a non-slip grip.
Three tip designs are available: curved down smooth, right angle smooth and right angle with teeth for a firmer hold on tissue. Each is offered with or without an integrated suction tube to clear smoke and fluid from the field.
With 12 blade sizes from 14 mm × 7 cm to 38 mm × 25 cm, the range covers short, narrow blades through to long, wide blades, and custom blade sizes are available on request. For a lighter one-piece option, see the Fiber Optic Retractor – Right Angle Blade; for a removable light carrier, see the Ferriera Style Fiber Optic Retractors. For bulk, wholesale or private-label orders, contact info@njmedicalinstruments.com.
| Blade Width | Blade Length | Inches (W × L) |
|---|---|---|
| 14 mm | 7 cm | 1/2″ × 2 3/4″ |
| 16 mm | 9 cm | 5/8″ × 3 1/2″ |
| 16 mm | 15 cm | 5/8″ × 6″ |
| 25 mm | 9 cm | 1″ × 3 1/2″ |
| 25 mm | 10 cm | 1″ × 4″ |
| 25 mm | 12 cm | 1″ × 5″ |
| 25 mm | 15 cm | 1″ × 6″ |
| 25 mm | 18 cm | 1″ × 7″ |
| 30 mm | 20 cm | 1 1/4″ × 8″ |
| 30 mm | 23 cm | 1 1/4″ × 9″ |
| 38 mm | 18 cm | 1 1/2″ × 7″ |
| 38 mm | 25 cm | 1 1/2″ × 10″ |
Overview | Instrument Type | Standard Fiber Optic Retractor |
|---|---|
| Light Carrier | Fixed, Laser Welded |
| Light-Carrier Diameter | 5 mm |
| Blade Size | 14 mm × 7 cm, 16 mm × 9 cm, 16 mm × 15 cm, 25 mm × 9 cm, 25 mm × 10 cm, 25 mm × 12 cm, 25 mm × 15 cm, 25 mm × 18 cm, 30 mm × 20 cm, 30 mm × 23 cm, 38 mm × 18 cm, 38 mm × 25 cm |
| Suction | Without Suction, With Suction |
| Tip Style | Curved Down Smooth, Right Angle Smooth, Right Angle with Teeth |
| Design | One-Piece |
| Blade Material | Stainless Steel |
| Handle | Stainless Steel, Non-Slip Grip |
