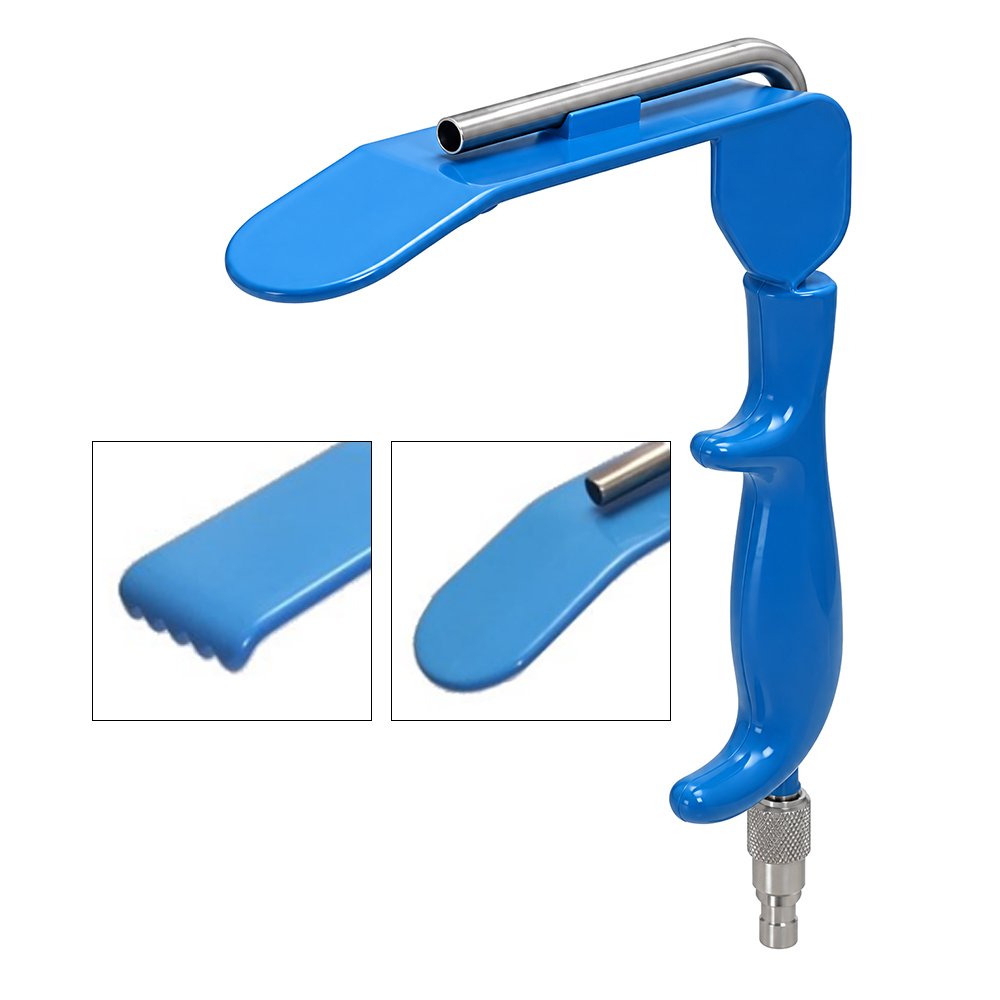

The Insulated Nonconductive Fiber Optic Retractors by NJ Medical Instruments combine a fully insulated, nonconductive stainless steel blade and handle with a removable 5 mm fiber optic light carrier in a modular design, for procedures where RF electrosurgical current is in use. They are available in 16 blade sizes (14 mm × 5 cm to 30 mm × 23 cm) and two tip designs: Smooth Round Tip and Right Angle Tip with Teeth. Each tip is offered with or without suction, for 64 configurations in all.
$ 159 – $ 259Price range: $ 159 through $ 259
Standard International Shipping Depending on Destination and Customs Clearance
7-15 Days
Flat 49 $. Free on Order Over 250$
Express Shipping (DHL/FedEx/TNT)
3-7 Days
Additional Cost Will Be Applied
Bulk/Wholesale Freight Delivery Timelines are Agreed Upon Separately Based on Order Volume and Destination.
Shipping & Exchange Policy
Return & Refund Policy
Payment Methods:
The Insulated Nonconductive Fiber Optic Retractors from NJ Medical Instruments are designed for plastic, specialty and general surgical procedures where RF electrosurgical current is in use. The stainless steel blade and handle are fully covered with a nonconductive insulating coating, and a fiber optic light carrier brings cold light to the blade tip for better tissue exposure.
The modular design uses a removable 5 mm light carrier, so the lighting component can be detached for cleaning and servicing. The flat, low-profile carrier runs along the blade and connects to standard light sources through a universal cable adapter.
Two blade tips are available: a smooth round tip with a slight downward curve, and a right-angle tip with teeth for a firmer hold on tissue. Each is offered with or without an integrated suction tube to clear smoke and fluid from the field.
With 16 blade sizes from 14 mm × 5 cm to 30 mm × 23 cm, the range covers short, narrow blades through to long, wide blades, and custom blade sizes are available on request. For non-insulated versions, see the Ferriera Style Fiber Optic Retractors and the Fiber Optic Retractor – Right Angle Blade. For bulk, wholesale or private-label orders, contact info@njmedicalinstruments.com.
| Blade Width | Blade Length | Inches (W × L) |
|---|---|---|
| 14 mm | 5 cm | 1/2″ × 2″ |
| 14 mm | 7 cm | 1/2″ × 2 3/4″ |
| 16 mm | 8 cm | 5/8″ × 3 1/4″ |
| 16 mm | 15 cm | 5/8″ × 6″ |
| 18 mm | 23 cm | 3/4″ × 9″ |
| 23 mm | 10 cm | 7/8″ × 4″ |
| 23 mm | 12 cm | 7/8″ × 5″ |
| 23 mm | 15 cm | 7/8″ × 6″ |
| 23 mm | 18 cm | 7/8″ × 7″ |
| 25 mm | 10 cm | 1″ × 4″ |
| 25 mm | 12 cm | 1″ × 5″ |
| 25 mm | 15 cm | 1″ × 6″ |
| 25 mm | 18 cm | 1″ × 7″ |
| 30 mm | 12 cm | 1 1/4″ × 5″ |
| 30 mm | 15 cm | 1 1/4″ × 6″ |
| 30 mm | 23 cm | 1 1/4″ × 9″ |
Overview | Instrument Type | Insulated Nonconductive Fiber Optic Retractor |
|---|---|
| Light Carrier | Removable |
| Light-Carrier Diameter | 5 mm |
| Blade Size | 14 mm × 5 cm, 14 mm × 7 cm, 16 mm × 8 cm, 16 mm × 15 cm, 18 mm × 23 cm, 23 mm × 10 cm, 23 mm × 12 cm, 23 mm × 15 cm, 23 mm × 18 cm, 25 mm × 10 cm, 25 mm × 12 cm, 25 mm × 15 cm, 25 mm × 18 cm, 30 mm × 12 cm, 30 mm × 15 cm, 30 mm × 23 cm |
| Suction | Without Suction, With Suction |
| Insulation | Nonconductive, Blade and Handle |
| Base Material | Stainless Steel |
| Tip Style | Smooth Round Tip, Right Angle Tip with Teeth |
