Spinal Surgical Instrumentation

Capener Osteotome, 25 cm – 10 to 30 mm Blade Widths

In stock

Original price was: $ 78.Current price is: $ 68.
Select options This product has multiple variants. The options may be chosen on the product page
Width10 mm, 12 mm, 15 mm, 20 mm, 25 mm, 30 mm

Caspar Bayonet Nerve Root Retractor, 24 cm – 4 or 6 mm Width

In stock

Original price was: $ 79.Current price is: $ 69.
Select options This product has multiple variants. The options may be chosen on the product page
Overall Length24 cm (9½”)
Working Length100 mm
ConfigurationBayonet
Available Widths4 mm, 6 mm

Caspar Bone Graft Holder and Impactor, 21.5 cm – 6×12 mm Tip

In stock

Original price was: $ 95.Current price is: $ 85.
SKU: NJMSS-105
Overall Length21.5 cm (8¼”)
Tip Size6 mm × 12 mm
DesignDowel holder, Bone graft holder and impactor
ApplicationTaking and handling larger block grafts, Vertebral body replacement procedures

Caspar Distraction Drill, 2 mm – Pilot Holes for Screws

In stock

Original price was: $ 49.Current price is: $ 39.
SKU: NJMSS-110
Instrument TypeDistraction Drill
Drill Size2 mm

Caspar Distraction Retractors – Right and Left

In stock

Original price was: $ 99.Current price is: $ 89.
Select options This product has multiple variants. The options may be chosen on the product page
Instrument TypeDistraction Retractor
Available ConfigurationsRight, Left

Caspar Distraction Screwdriver

In stock

Original price was: $ 65.Current price is: $ 55.
SKU: NJMSS-109
Instrument TypeScrew Driver
ConfigurationSurgical screwdriver design, Dedicated working end for compatible screws

Caspar Distraction Screws – 7 cm Post, 12, 14 or 16 mm Thread

In stock

Original price was: $ 99.Current price is: $ 89.
Select options This product has multiple variants. The options may be chosen on the product page
Post Length7 cm (2¾”)
Available Thread Lengths12 mm, 14 mm, 16 mm

Caspar Drill Guide – Right and Left Configurations

In stock

Original price was: $ 79.Current price is: $ 69.
Select options This product has multiple variants. The options may be chosen on the product page
Instrument TypeDrill Guide
Available ConfigurationsRight, Left

Caspar Exploration Hook, Insulated – 24.5 cm, Slender Shaft

In stock

Original price was: $ 79.Current price is: $ 69.
SKU: NJMSS-132
Overall Length24.5 cm (9¾”)
ShaftInsulated Shaft
Working EndHook-Shaped

Caspar Toothed Disc Rongeur

In stock

Original price was: $ 34.Current price is: $ 30.
Select options This product has multiple variants. The options may be chosen on the product page
SKU: NJMSS-16
Select TypeSTRAIGHT JAW, UPWARD JAW, DOWNWARD JAW
Size16cm, 18cm
Bite Size2mm, 3mm, 4mm, 5mm

Caspar Vertebral Body Distraction Set – Complete with Screws

In stock

Original price was: $ 399.Current price is: $ 299.
SKU: NJMSS-106
Set ConfigurationRight
Distraction Screw Size14 mm
Screw QuantityBox of 10

Castroviejo Caliper, 7 cm – 3 to 25 mm Measuring Range

In stock

Original price was: $ 59.Current price is: $ 49.
SKU: NJMSS-190
Overall Length7 cm (2¾”)
Measuring Range3 mm to 25 mm

Spinal Surgical Instrumentation: Rongeurs, Curettes & Retractors

Spinal instruments are built around one constraint that governs everything: the spinal cord and nerve roots are millimetres from the working field, and they do not recover from injury. That is why spinal instrumentation looks the way it does — footplates that slide safely between bone and dura, angled and bayonet shafts that keep the surgeon's hand out of the sightline, and long, narrow retractors that hold a deep corridor open through a small incision. NJ Medical Instruments manufactures the range in surgical-grade stainless steel, supplied worldwide direct from the factory for individual purchase and for bulk, wholesale, and OEM/private-label supply.

Kerrison rongeurs

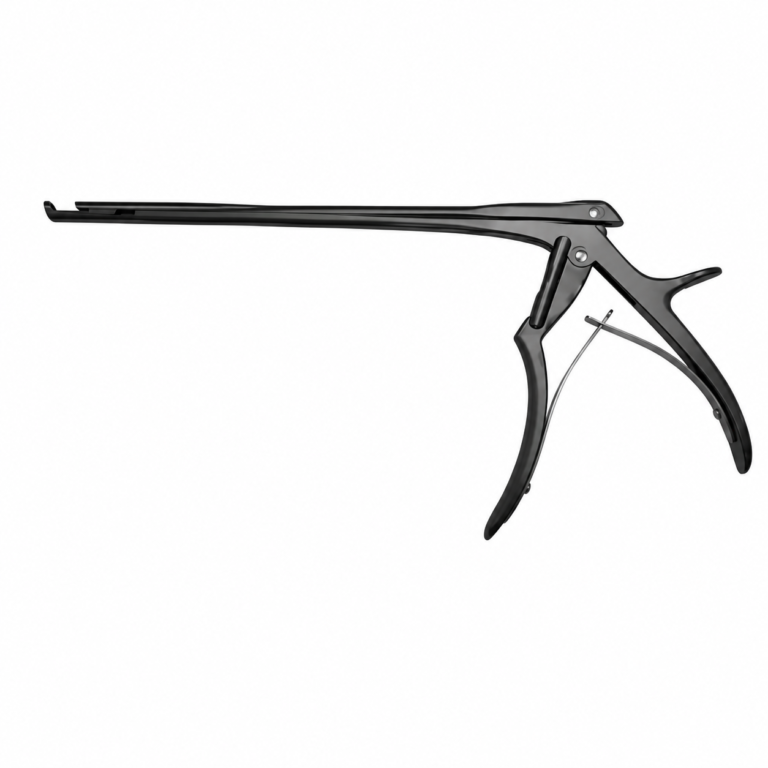

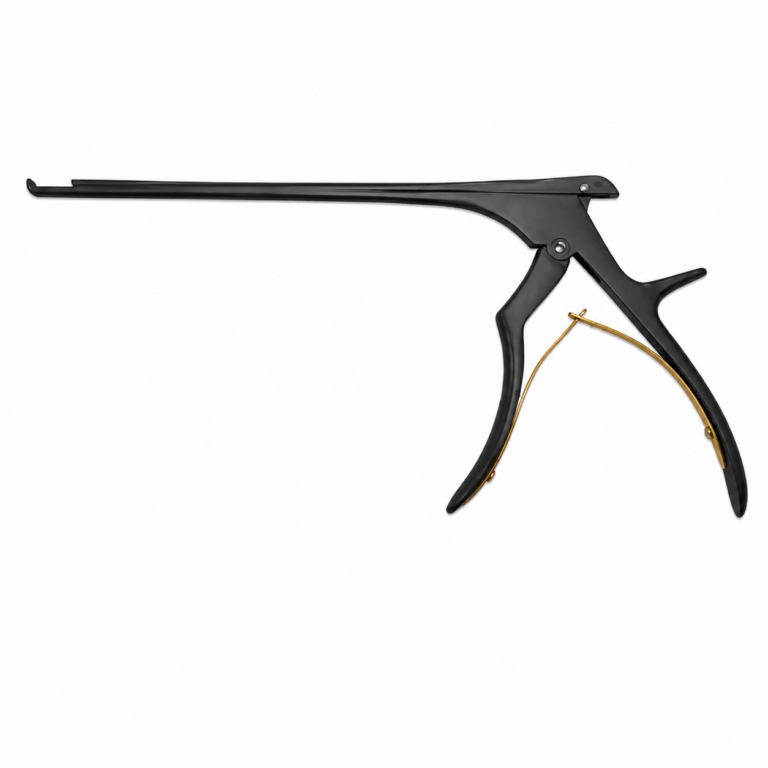

The Kerrison rongeur is the defining spinal instrument. A thin footplate slides beneath the lamina or ligamentum flavum, and a punch cuts bone against it — so bone is removed in controlled bites while the footplate physically separates the cutting edge from the dura underneath. They are specified by bite width (commonly 1–5 mm) and up-angle (40° and 90° being standard), chosen to match the corridor being decompressed.

Curettes, elevators and retractors

Spinal curettes — straight, angled, and reverse-angled — scrape disc material and cartilaginous endplate from the interspace. Penfield and Woodson dissectors separate dura and nerve root from surrounding tissue atraumatically; the blunt working ends are deliberate, since anything sharp near the dura risks a tear. Nerve root retractors hold the root aside during discectomy, and self-retaining spinal retractors maintain the deep corridor without an assistant.

Which spinal instrument do you need?

InstrumentDesign featureUsed for
Kerrison rongeurFootplate + punch, 1–5 mm bitesRemoving lamina & ligament safely
Pituitary rongeurLong shaft, cup jawsRemoving disc material
Spinal curetteStraight / angled / reverseClearing the disc space & endplate
Penfield / Woodson dissectorBlunt working endsSeparating dura & nerve root
Nerve root retractorSmooth, contoured bladeHolding the root aside
Self-retaining retractorLocks openMaintaining a deep corridor

Explore related instruments

All manufactured in surgical-grade stainless steel to international standards, reusable and autoclavable, with worldwide shipping.

Bulk, wholesale & OEM supply

As a direct manufacturer, NJ Medical Instruments supplies spinal surgical instrumentation in bulk and wholesale quantities to hospitals, spinal and neurosurgical units, and distributors, and assembles complete spinal sets. OEM / private-label production to custom specifications and laser marking is available. Contact us by email at [email protected] or by WhatsApp for volume pricing — no minimum-order barriers, no middlemen.

Frequently asked questions

What is a Kerrison rongeur used for?

A Kerrison rongeur removes bone and ligament during spinal decompression. Its thin footplate slides beneath the lamina or ligamentum flavum and a punch cuts against it, so bone is taken in controlled bites while the footplate keeps the cutting edge away from the dura.

What size Kerrison rongeur is used in spine surgery?

Kerrison rongeurs are specified by bite width, commonly 1 to 5 mm, and by up-angle, typically 40 or 90 degrees. The size is chosen to match the corridor being decompressed — narrower bites for tight spaces, wider for faster bone removal.

What is a Penfield dissector used for?

A Penfield dissector separates dura and nerve root from surrounding tissue. Its working ends are deliberately blunt, because any sharp edge working against the dura risks a tear and cerebrospinal fluid leak.

What is the difference between a Kerrison and a pituitary rongeur?

A Kerrison rongeur has a footplate and punch action for cutting bone safely away from neural structures. A pituitary rongeur has cup-shaped jaws on a long shaft and is used to grasp and remove disc material rather than to cut bone.

Why are spinal instruments angled or bayonet shaped?

The angle or bayonet step moves the shaft and the surgeon's hand out of the line of sight, keeping the view of a deep, narrow surgical corridor clear while the working tip operates at the far end.

Do you supply spinal instruments in bulk or as complete sets?

Yes. As a direct manufacturer we supply spinal instrumentation in bulk and wholesale quantities, assemble complete spinal sets to your instrument list, and offer OEM / private-label production. Contact us by email or WhatsApp for volume pricing.
